Products Description
The PAF side-mounted flange level transmitter is installed with a side-mounted flange. The flange and measuring components are lined with PFA material, which is resistant to strong acids, strong alkalis, and high-temperature media. Based on the principle of static pressure, it measures the liquid level using a diaphragm and outputs a 4-20mA signal (HART protocol is optional). It features anti-adhesion and corrosion resistance, making it suitable for measuring the levels in corrosive storage tanks and reactors in industries such as chemical, metallurgy, and environmental protection.
Technical parameter

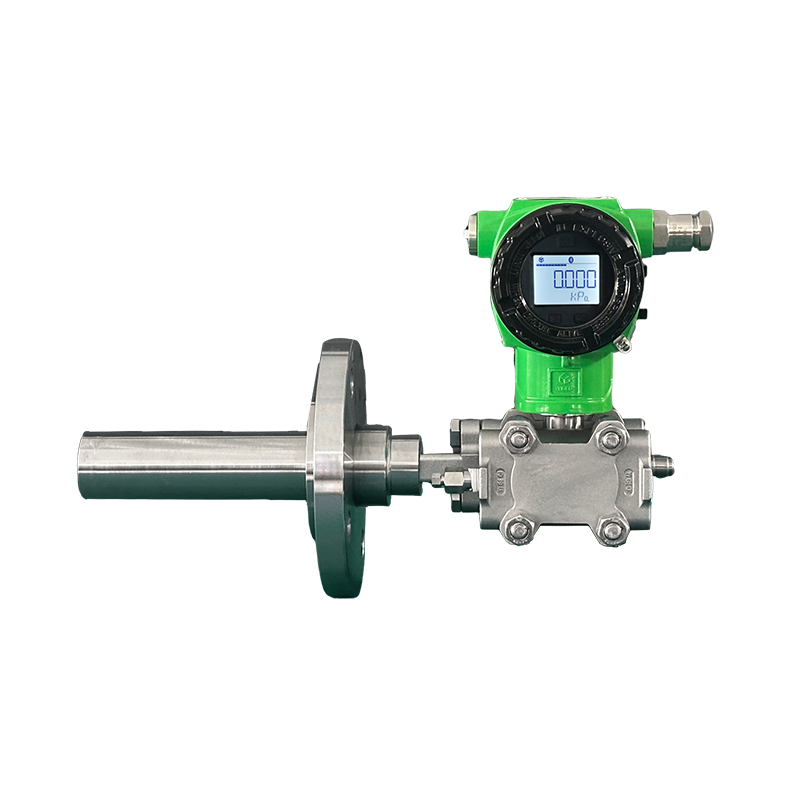

Extended insertion flange level transmitter
New-Input type liquid level transmitter
New-Double flange liquid level transmitter
Double Flange Level Transmitter
Magnetic flap level indicator
Measurement accuracy: ±0.2%
Process connection: DN50/DN80/DN100, etc
Seal type: flat flange / extension type / flat type / threaded connection type, etc
Diaphragm liquid contact material: 316L stainless steel /HC-276/Ta tantalum /Ni nickel /Ti titanium /
Monel Montel / 2205
Surface treatment of isolation diaphragm: gold plating/PFA spraying/PTFE spraying/red gemstone
