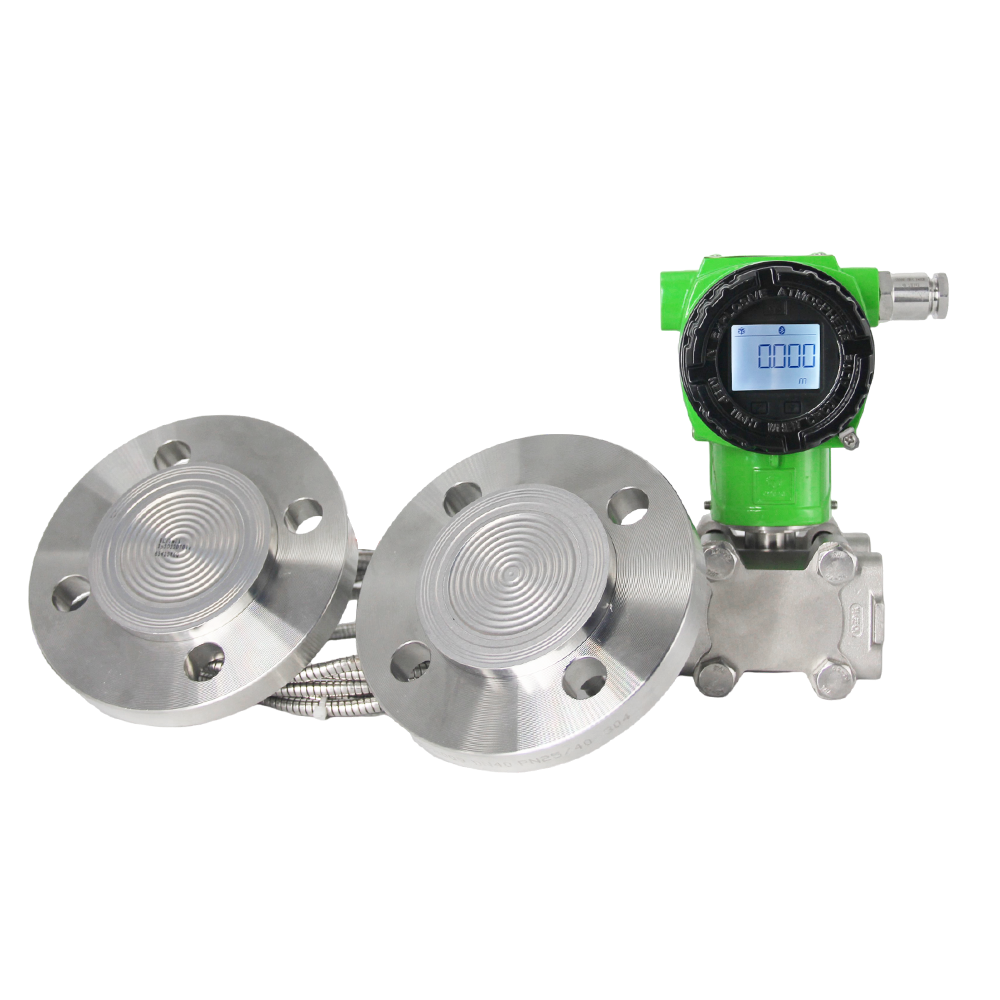

In the production process of the papermaking industry, accurately measuring the pulp level is essential. However, traditional pressure tube level transmitters often become clogged due to the viscosity of the medium and fiber deposits, which not only reduces production efficiency but also increases maintenance costs. The Yigeqi double-flange level transmitterovercomes these clogging issues and enhances the production process. Its stability and ease of maintenance make it the preferred choice for measuring pulp levels in the papermaking industry.

During the preparation and storage of pulp, the medium contains a significant amount of fibers, impurities, and viscous substances, which can easily accumulate inside the pressure guiding tube. This accumulation can lead to pressure transmission failure and inaccurate level measurement. The double-flange level transmitter is designed without a pressure guiding tube, allowing the high-pressure and low-pressure flanges to directly contact the medium. This design eliminates the risk of pressure guiding tube blockage and removes the pressure guiding tube structure entirely.

Its primary advantages include:

1. Strong anti-clogging: The flange diaphragm directly senses pressure, preventing the accumulation of fibers and particles.

2. Corrosion and wear resistance: Special materials, such as PTFE linings, resist the chemical corrosion and mechanical wear of pulp.

3. Long-term maintenance-free: Reduces the frequency of shutdowns for cleaning, thus enhancing production efficiency.

4. Intelligent signal output: Supports various communication protocols, including 4-20mA and HART, facilitating integration with DCS systems to achieve real-time monitoring and intelligent control of liquid levels.

With the wide use of double flange level transmitter, the level measurement has achieved "zero blockage" and long-term stable operation. The solution of this measurement problem marks a significant progress in the process measurement field of paper industry.
