Products Description

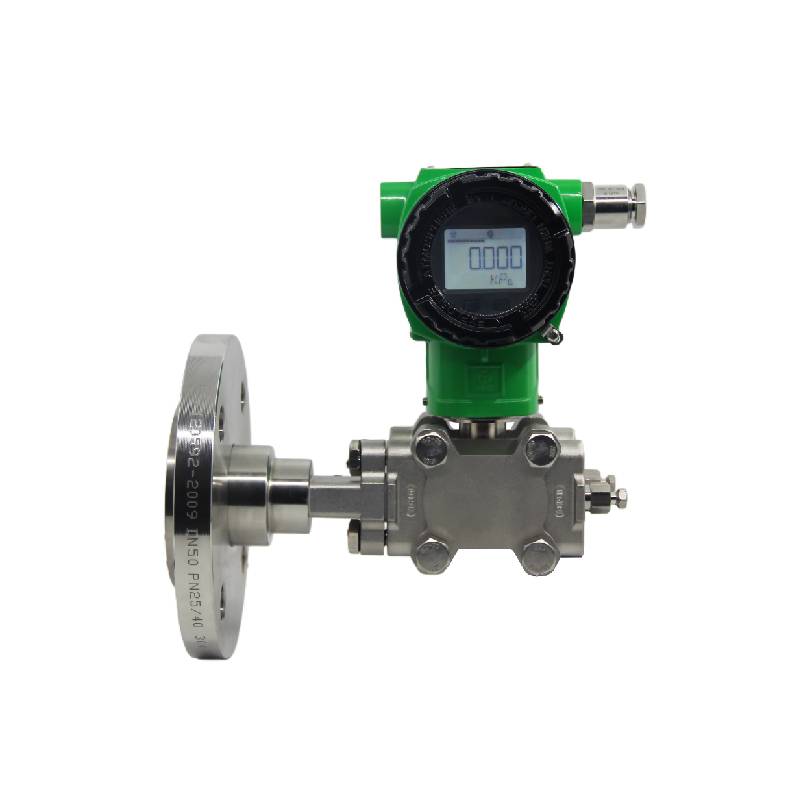

The side mounted single flange differential pressure transmitter is connected to the process through the side mounted flange, and there is a pressure interface on each side of the device for measuring pressure at different points. The pressure of the medium acts on the sensing diaphragm, and the deformation of the diaphragm is converted into an electrical signal by the internal differential pressure sensor. After internal signal processing, these electrical signals are converted into standardized output signals (such as 4-20mA) for remote monitoring and control.
characteristic:
High precision: Equipped with high-precision differential pressure sensors to ensure the accuracy of measurement results.
Reliability: A sturdy and durable structure that adapts to various harsh industrial environments.
Easy to install: The side mounted flange design simplifies the installation process and facilitates on-site debugging and maintenance.
Output format: Supports 4-20mA output signals, making it easy to integrate into different control systems.
Corrosion resistance: Different materials of membranes and flanges can be selected to adapt to the measurement of corrosive media and complex environments.
Technical parameter

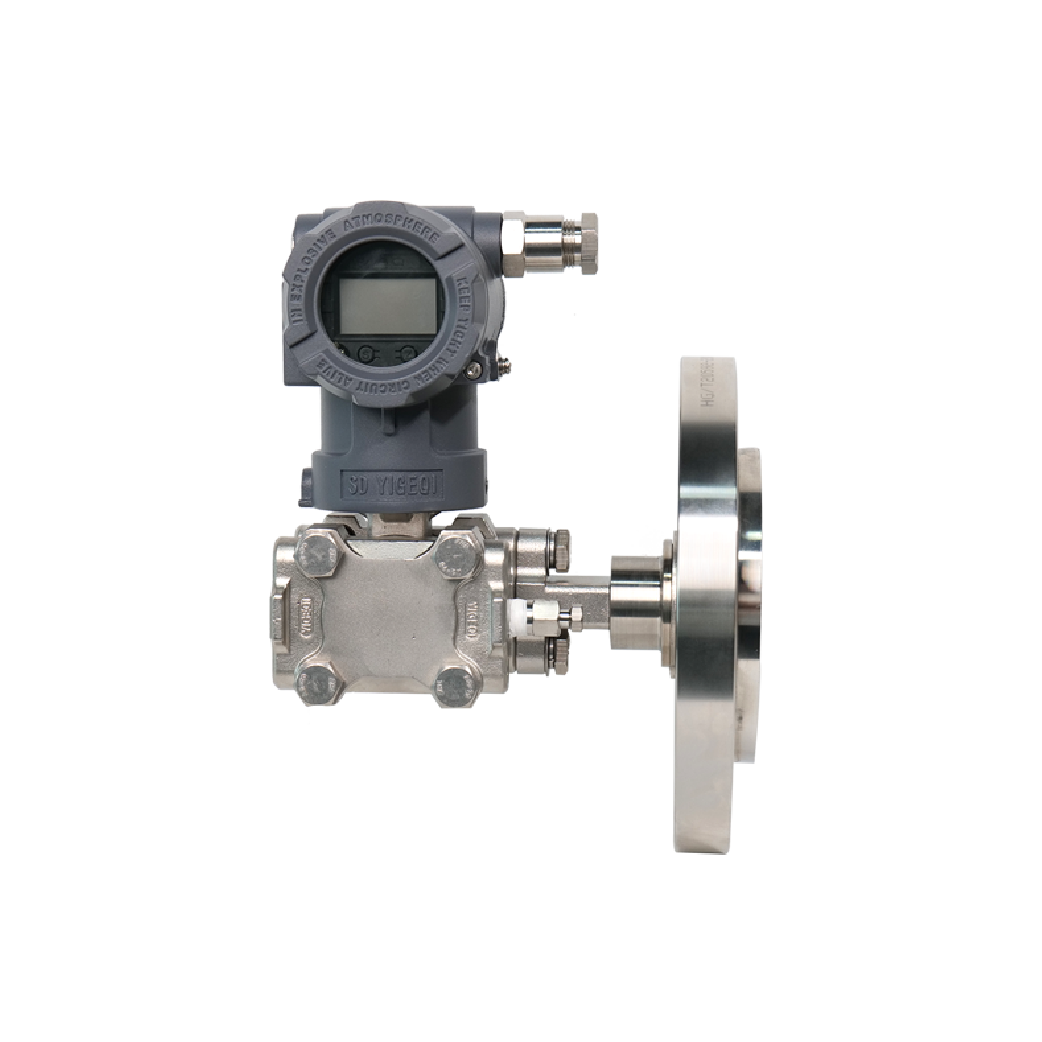

YGQ7961YF Side-mounted Single-flange Level Transmitter

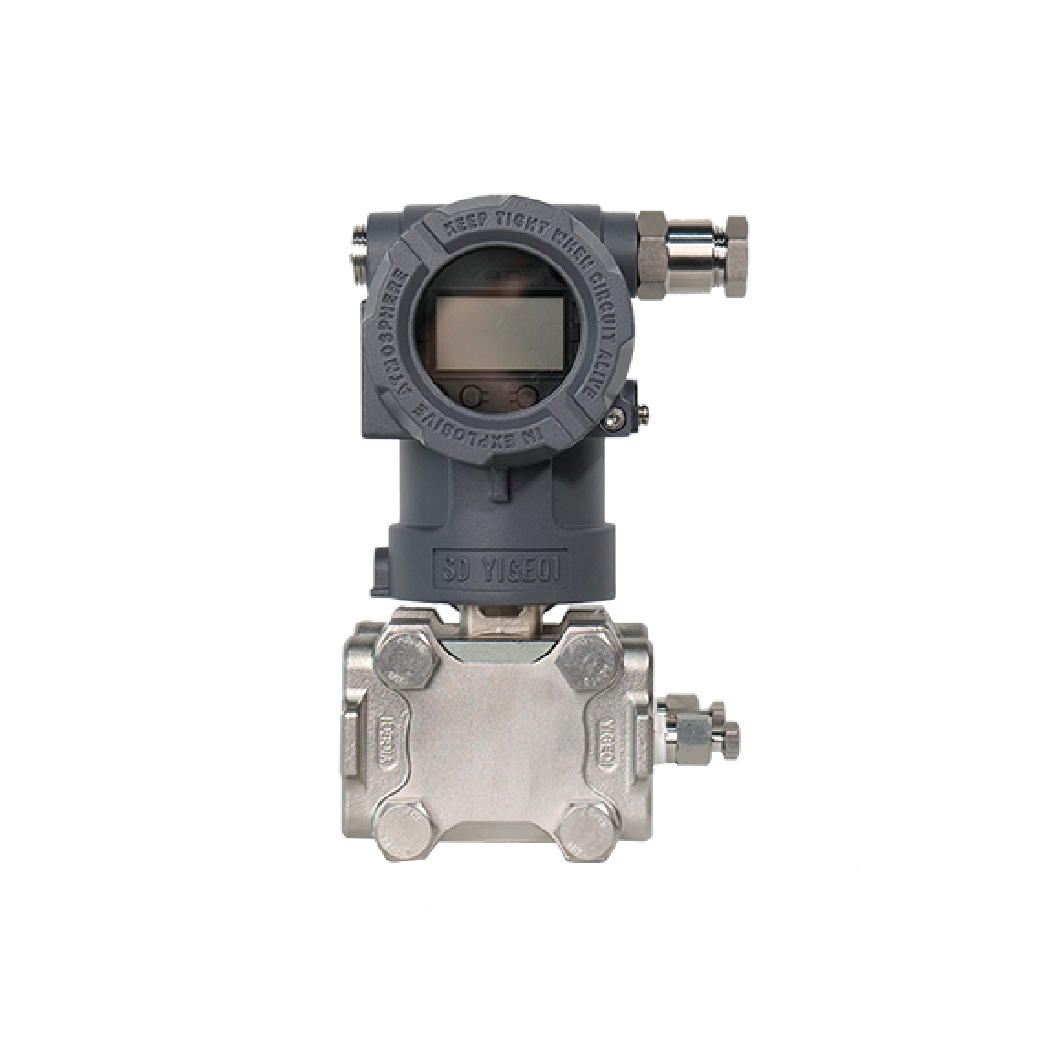

YGQ7961D Differential Pressure Transmitters

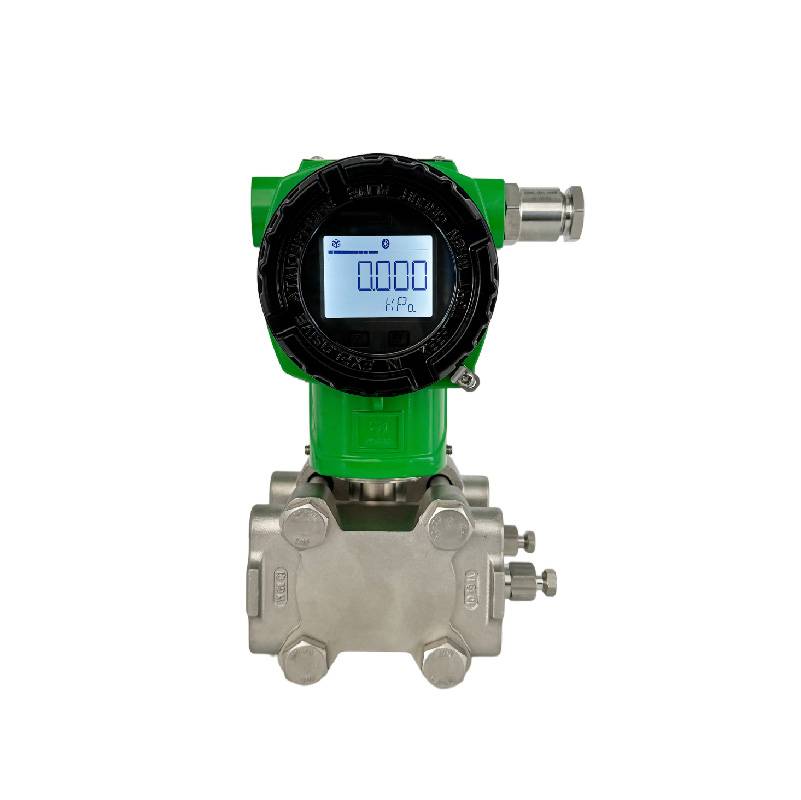

New - Differential Pressure Transmitter
| Instrument model | YGQ7961D/7119 |
| Instrument category | Liquid level transmitter |
| Process Connection | Flanges, threads, and sanitary types |
| 2-inch/DN50/50A | |
| 3-inch/DN80/80A | |
| Range | Range selectable within 0-15m |
| Liquid receiving material | 316L stainless steel |
| Hastelloy C-276 | |
| TA tantalum, NI nickel, T titanium, etc | |
| Accuracy | ±0.1%FS |
| Filling fluid | Low temperature oil XLT |
| DC200 DC704 DC705 | |
| Fluorine oil |
