Products Description
The YGQ7961YF single flange level transmitter features HART protocol · 4-20mA output, with a unique conversion from pressure signal to digital signal, offering high stability and precision. It has a unique LCD display design with range and zero-point adjustment buttons, a variety of process flange connections, and multiple material measurement capsule options to enable measurement and application in highly corrosive and other special conditions.
Technical Features:
HART protocol, 4-20mA output
High precision, accuracy up to 0.2%
LCD display with setting buttons
Process flange connection, flange material: carbon steel, 304 stainless steel, 316 stainless steel
Process isolation diaphragm: 316L tantalum diaphragm, Hastelloy Monel, etc.
EX Dii CT6 explosion-proof certification and SIL3 certification.

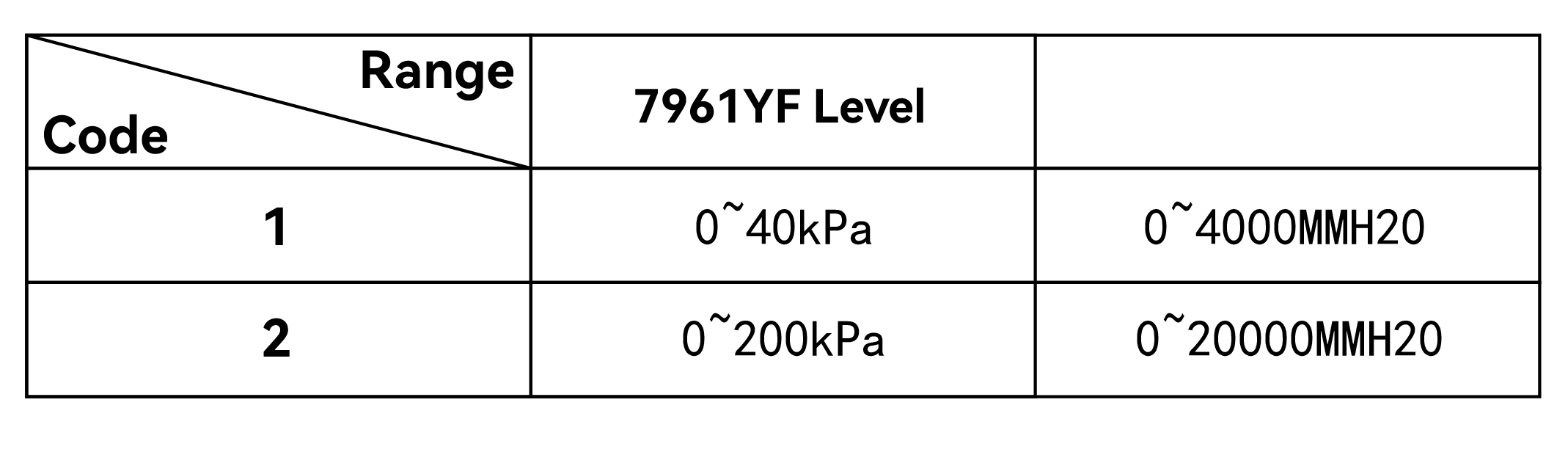

Technical parameter
