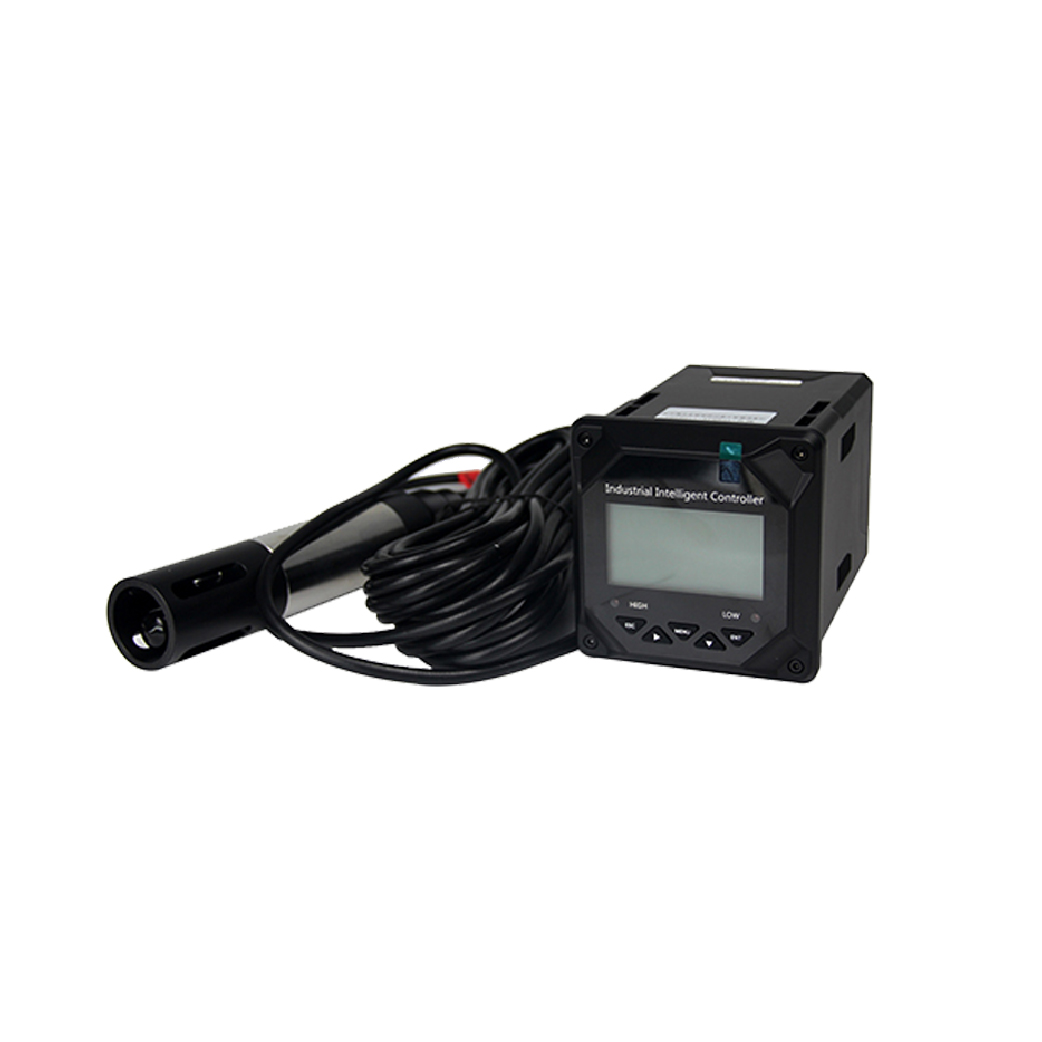

Products Description
Yige independently develops electronic online monitoring of PH/0RP values, which are transmitted remotely to the monitoring room through RS485 or current transmission for recording and storage.
PH/ORP tester is one of the intelligent online chemical analysis instruments, widely used for continuous monitoring of pH or ORP values and temperature in solutions such as thermal power, chemical fertilizers, metallurgy, environmental protection, pharmaceuticals, biochemistry, food, and tap water.
Continuous monitoring data can be remotely transmitted and recorded through a transmission output connected to a recorder. It can also be connected to an RS485 interface and conveniently connected to a computer through the MODBUS-RTU protocol for monitoring and recording.
Technical parameter
Dissolved Oxygen Meter
Modular design of the board makes assembly and configuration more convenient
Adopting a 2.4-inch 12864 dot matrix screen
Adopting isolated transmission output, with less interference
Adopting isolated RS485 communication
Can perform PH/ORP measurement, temperature measurement, upper and lower limit control, transmission output, RS485 communication
Configurable temperature manual and automatic compensation functions
High and low alarm functions, as well as hysteresis, can be set
Can set buzzer and LCD backlight switch functions
Add universal password function
Industrial controlled watchdog ensures instruments do not crash
Can set isolation transmission 4-20 mA output, maximum loop 750 Ω 0.1% FS
Measurement range: PH (0-14PH); ORP (-1000-+1000mV or (-2000-+2000mV))
Accuracy: ± 0.02pH; 1mV
Resolution: 0.01pH; 1mV
Stability: ≤ 0.02pH/24H< 3 mV/24H
Temperature measurement range: -10-130 ℃, accuracy: ± 0.5 ℃ (NTC10K or PT1000)
Temperature compensation: -10-130 ℃ manual/automatic
RS485 function: compatible with standard MODBUS-RTU communication protocol
Power supply: AC220V ± 10%, 50Hz/60Hz (AC110V ± 10%, 50Hz/60Hz)
Relay alarm: Two normally open and normally closed alarm relays AC250V, 3A
Language: Chinese and English can be switched
