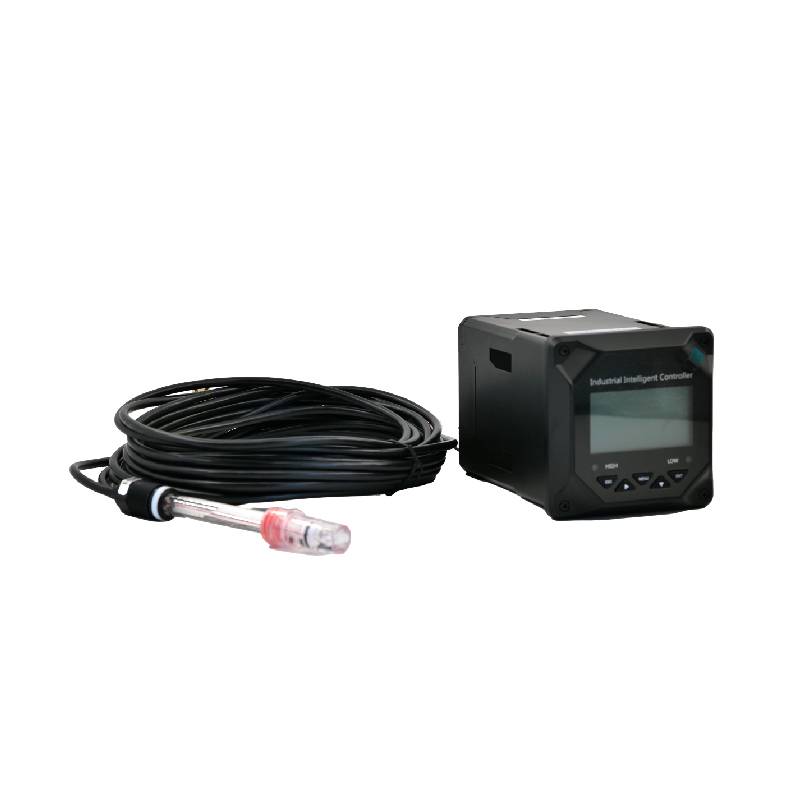

Product Name: Industrial Online Dissolved Oxygen Meter

Product Model: YGO-RJY

Dissolved oxygen: 0-20mg/L

Measuring range Saturation: 0-200%

Partial pressure of oxygen: 0-400hPa

Dissolved oxygen: 0.01mg/L

Resolution Saturation: 0.10%

Comprehensive accuracy: soil 15% F5

Repeatability: Soil 0.5% F5

Temperature compensation type: NTC 10K/PT1000

Auto A/Manual H can be selected

Temperature compensation range: -10-60°C

Transmitter Output: Isolated transmitter 4-20mA output

Maximum loop 7500 with 0.1%FS accuracy

Communication function: RS485 function, standard MODBUS-RTU protocol

Power supply: AC220V+10%, 50Hz/60Hz

Optional: 24V+10%

Alarm function: two normally open and normally closed alarm relay AC250V, 3A

Language: Chinese and English can be switched

Dimensions: 100*100*1 50mm

Opening size: 93*93mm
