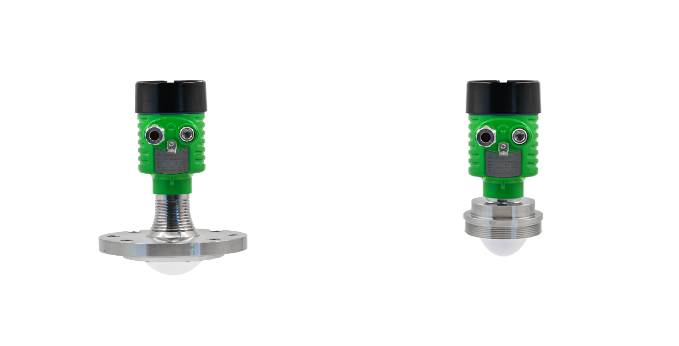

To solve this problem, the EGE anti-purge radar level gauge is equipped with a dedicated purge pipe. The purge pipe blows clean gas (such as compressed air or nitrogen) to the radar antenna continuously or intermittently to prevent dust from accumulating on the radar antenna and ensure the stable transmission of radar signals.
The dedicated purge pipe, by blowing clean gas continuously or intermittently, effectively prevents dust from accumulating on the radar antenna, making it an ideal choice for level measurement in high-dust environments:
Prevent dust accumulation
In a high-dust environment, dust is likely to accumulate on the radar antenna, affecting the measurement accuracy. The purge pipe blows clean gas continuously, effectively preventing dust from accumulating on the radar antenna and ensuring the stability and accuracy of the measurement signals.
Extend the service life of the equipment
Dust not only affects the measurement accuracy but also causes corrosion and wear to the electronic components and mechanical parts of the radar level gauge. The use of the purge pipe can reduce the damage of dust to the equipment and extend the service life of the equipment.
Reduce the maintenance frequency
Traditional level gauges in high-dust environments require frequent maintenance and cleaning, increasing the maintenance cost and workload. The anti-purge radar level gauge, through the function of the purge pipe, reduces the impact of dust on the equipment, and lowers the maintenance frequency and cost.
Improve the measurement accuracy
The accumulation of dust will lead to the attenuation and reflection of radar signals, affecting the measurement accuracy. The use of the purge pipe can ensure the stable transmission of radar signals, improve the measurement accuracy, and ensure the stability and efficiency of the production process.
In addition to the additional advantages brought by the purge pipe, the EGE radar level gauge itself also has many irreplaceable advantages:
Non-contact measurement: There is no need to contact the measured medium, avoiding contamination of the medium and wear of the equipment.
High precision and high reliability: 80G continuous frequency modulation wave testing, HART 7 communication protocol, which can accurately measure the level of various media, and is suitable for a variety of media such as liquids, solids, and slurries.
Strong anti-interference ability: SIL certification, lightning protection and explosion protection, not affected by environmental factors such as temperature, pressure, steam, dust, etc., and is suitable for complex working conditions.
Easy installation and low maintenance cost: Compact structure, flexible installation, and no need for frequent calibration and maintenance, reducing the use cost.

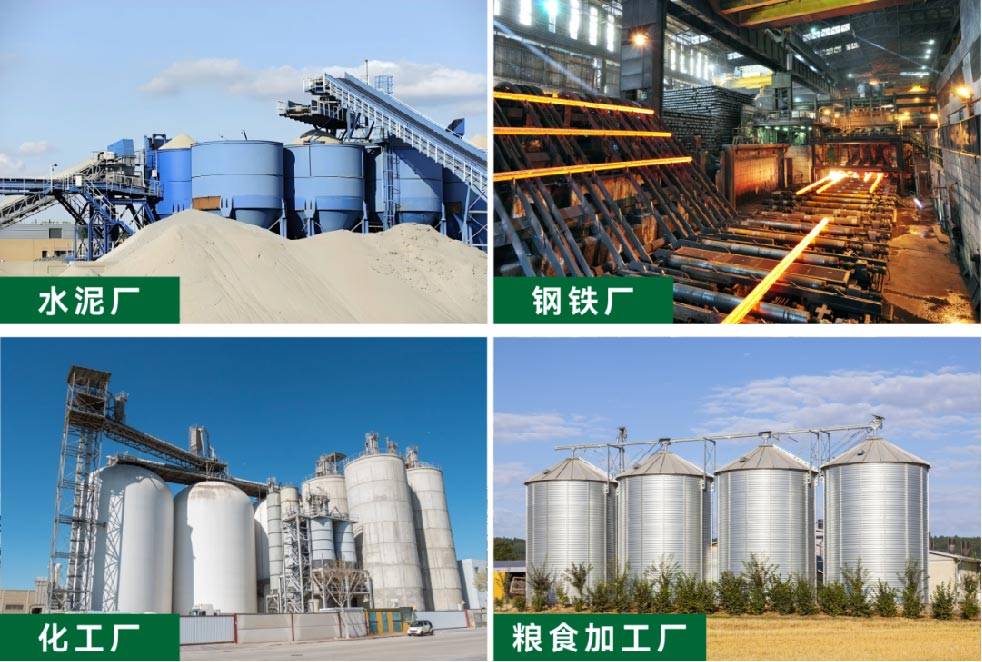

With its excellent performance, the EGE anti-purge radar level gauge has demonstrated outstanding applicability in various level measurement scenarios in high-dust environments (the following are only some examples).
Cement factory: A large amount of dust is generated during the cement production process, and traditional level gauges are difficult to deal with. Through the function of the purge pipe, the anti-purge radar level gauge effectively prevents dust accumulation and ensures the accuracy of level measurement.
